New products

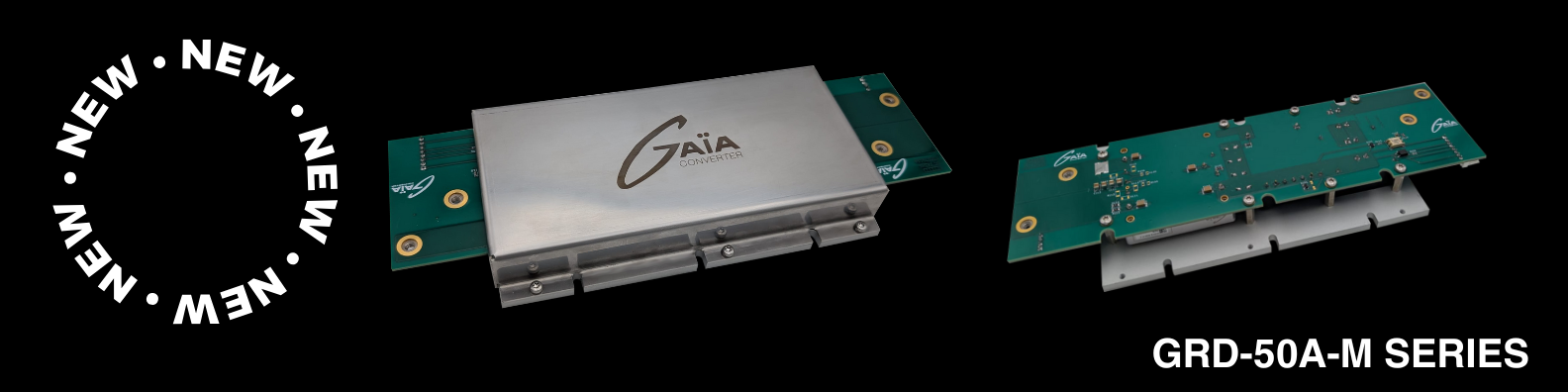

500 W integrated power supplies for high-reliability applications
Launch of the GRD-50A-M series of scalable 500 W integrated power supplies:
- Complies with major military standards, including MIL-STD-1275, MIL-STD-704, and MIL-STD-461
- Total output power of 500 W with 12 Vdc, 15 Vdc, 24 Vdc or 28 Vdc, 48 Vdc output voltage
- Overall efficiency of 89 %, with full protection for output short circuit (hiccup mode), overvoltage, and overtemperature
- Overall board dimensions are 10″ x 2.75″ x 0.9″ (255 x 70 x 24.25 mm) and operating temperatures extend from -40 °C to +85 °C base-plate and -40°C to 105°C converter case
Gaia Converter’s MGDS-500 Series expands its offering of Hi-Rel half-brick DC/DC’s to 500W output power.
More 16-80V input 500W Hi-Rel DC-DC Series
Expansion of the MGDM-500 range 500W half brick Isolated DC/DC converter :
- New input range dedicated to DO 160 and Mil-Std-704.
- The MGDM-500, O input series covers 16 to 75 /80 Vdc transient input range to cope with Avionic standard 80V/50ms input surge.
- MGDS-500-O-E, MGDS-500-O-F, MGDS-500-O-I deliver respectively 12,15, 24 Vdc output.
New 40W & 80W / MGDD-40-R and MGDD-80-R series with new R input
Launch of new products isolated DC/DC converters from 12 to 160 Vdc with ultra-wide input range :
- 40-80W Hi-Rel DC/DC Converter 12-160Vdc input range
- Dedicated to comply with VG-96916-5, Mil-STD-1275 – For Embedded electronics, Civilian Aircraft, Ground Borne…
- Compact 1.3’’ x 1.6’’ & 1.6’’ x 2.0’’ packages
GRD-12A-M Series : 120W Integrated Power supply
- 120W integrated power supply 16-60Vdc input
- Dedicated to comply with Mil-STD-1275, Mil-STD-704, and DO160 – For Mil-Aero, Mil-Ground-borne, Naval, Civilian Avionic applications
- Connectorized 6.9’’ x 4.7’’ x 0.9’’ package

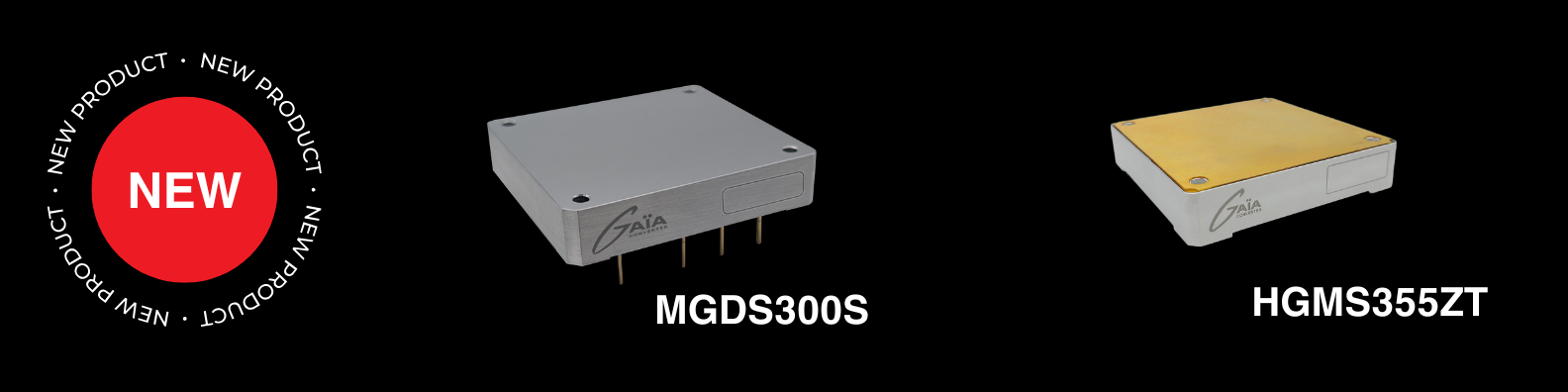

GAIA Converter continues to expand its product offering with 2 new AC-DC and high voltage input DC-DCs:
Dedicated to airborne and high reliability AC-DC systems, the new 350W HGMS355ZT covers all single phase AC input buses ( 115VAC 47 to 800Hz and 220VAC 50/60Hz) with DO-160, Mil-Std-704 excellent THD PFC performance. Its high efficiency and built in pre-filter fit in the compact 1/2 brick package and provide a non-isolated 420V output, ideal to build holdup time.
The also new 300W MGDS300S isolated DC-DC series is the ideal companion to the HGMS355ZT: its wide input voltage makes it ideal as an isolation stage after a PFC module or to operate on a 270VDC bus systems and provides output voltages from 12V to 28VDC. The MGDS300S is a high efficiency isolated DC-DC converter packaged in the industry standard 1/2 brick package.
These 2 modules combined offer a perfect 300W isolated AC-DC power system to comply with the most stringent airborne standards. The MGDS300S alone is also a perfect candidate for 270VDC or other high voltage input bus systems. Both leverage GAIA Converter’s expertise in high efficiency fixed frequency topologies and high reliability rugged construction.
.
